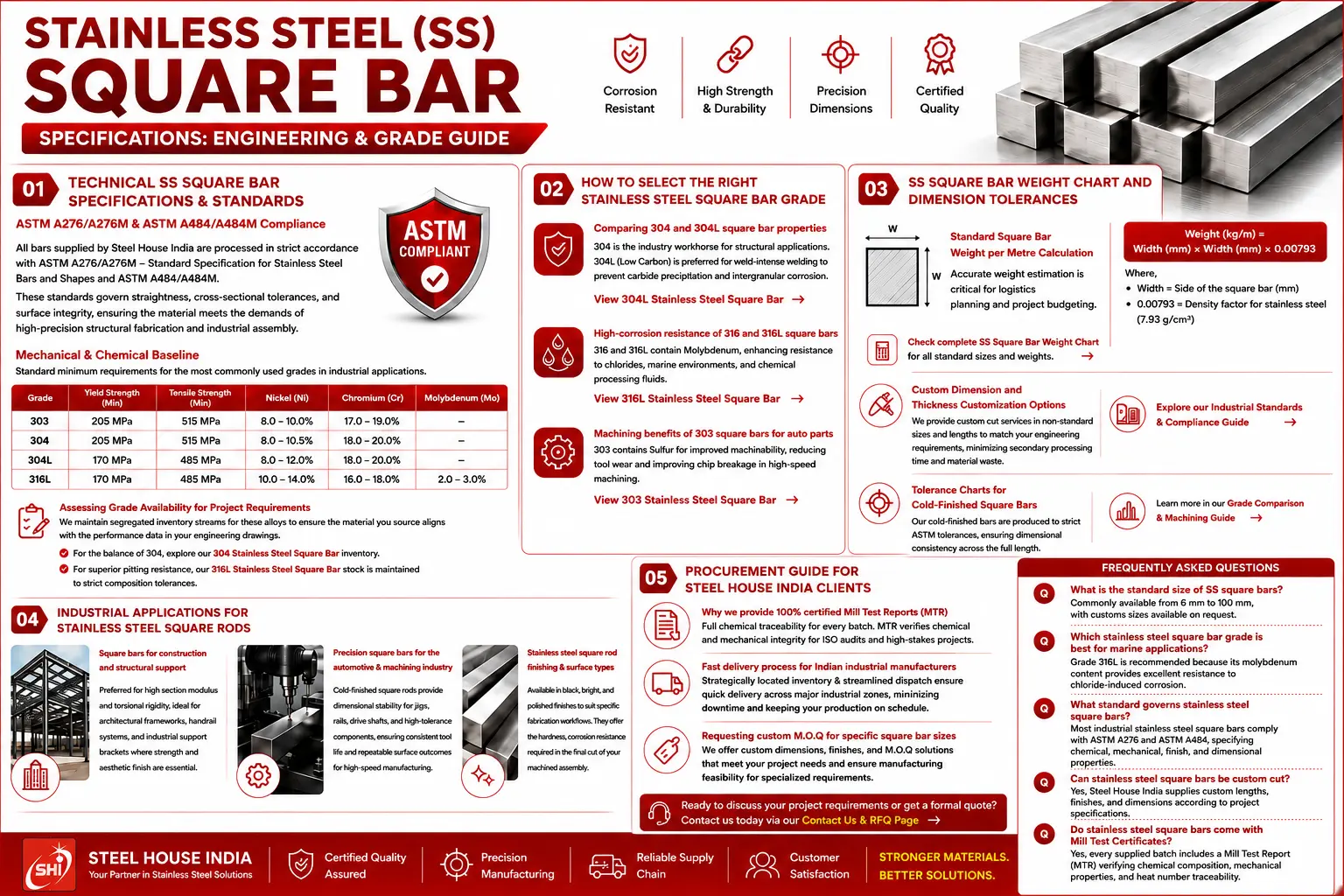

Technical SS Square Bar Specifications & Standards
ASTM A276 and A484 Compliance
All bars supplied by Steel House India are processed in strict accordance with ASTM A276/A276M (Standard Specification for Stainless Steel Bars and Shapes) and ASTM A484/A484M. These standards are critical for engineers and procurement managers as they govern the essential requirements for straightness, cross-sectional tolerances, and surface integrity. By ensuring compliance with these global standards, we provide the metallurgical assurance that the material will meet the demands of high-precision structural fabrication and industrial assembly.
Mechanical & Chemical Baseline
Engineers require verified data for stress-load calculations and corrosion resistance profiles. The following table represents the standard minimum requirements for the grades most frequently utilized in industrial applications:
| Grade | Yield Strength (min) | Tensile Strength (min) | Nickel (Ni) | Chromium (Cr) | Molybdenum (Mo) |
|---|---|---|---|---|---|
| 304 | 205 MPa | 515 MPa | 8.0–10.5% | 18.0–20.0% | — |
| 316L | 170 MPa | 485 MPa | 10.0–14.0% | 16.0–18.0% | 2.0–3.0% |
Assessing Grade Availability for Project Requirements
When project specifications are finalized, sourcing consistent batches is essential for structural uniformity. We maintain segregated inventory streams for these alloys to ensure the material you source aligns with the performance data in your engineering drawings. For projects requiring the balance of 304, our 304 Stainless Steel Square Bar inventory provides reliable structural performance, while for environments demanding superior pitting resistance, our 316L Stainless Steel Square Bar stock is maintained to strict composition tolerances.
How to Select the Right Stainless Steel Square Bar Grade
Comparing 304 and 304L Stainless Steel Square Bar Properties
The primary difference between standard 304 and 304L (Low Carbon) lies in carbon content, which directly impacts weldability and intergranular corrosion resistance. Grade 304 is the industry workhorse for structural applications; however, for fabrication processes involving extensive welding, the 304L variant is preferred to prevent carbide precipitation. When your design requires both structural integrity and ease of secondary fabrication, our 304L Stainless Steel Square Bar range offers the necessary metallurgical stability.
High-Corrosion Resistance of 316 and 316L Square Bars
In environments exposed to chlorides, marine atmospheres, or chemical processing fluids, standard 304 grades are often insufficient. Grade 316 and 316L incorporate Molybdenum, significantly enhancing pitting and crevice corrosion resistance. For projects where the square bars will be subject to aggressive industrial media, engineers should prioritize these grades. We keep a ready-to-ship supply of these alloys, with full technical specifications available in our 316L Stainless Steel Square Bar catalog.
Machining Benefits of 303 Square Bars for Auto Parts
For high-volume manufacturing—specifically in the automotive and machinery sectors—machinability is a critical cost factor. Grade 303 contains added sulfur, which improves chip breakage and reduces tool wear during turning, milling, or drilling. While 303 offers lower corrosion resistance compared to 304, its performance in high-speed machining environments is unmatched. You can review the dimensional availability of these free-machining bars in our 303 Stainless Steel Square Bar section.
SS Square Bar Weight Chart and Dimension Tolerances
Standard Square Bar Weight Per Meter Calculation
Accurate weight estimation is critical for logistics planning and project budgeting. While theoretical weights depend on the density of the specific stainless steel alloy, the standard weight per meter for a square bar can be derived using the cross-sectional area and the density factor. To simplify your logistics planning, we have developed a dedicated SS Square Bar Weight Chart that provides the kg/meter specifications for all standard sizes, allowing for immediate estimation of your project's material mass.
Custom Dimension and Thickness Customization Options
While standard metric and imperial sizes cover the majority of industrial requirements, we recognize that custom engineering designs often necessitate non-standard dimensions. Steel House India facilitates custom-cut services to ensure your bars arrive at the precise length and width required for your assembly, minimizing secondary processing time and material waste. For a detailed breakdown of how we manage custom dimensions and M.O.Q processing for unique industrial applications, you can review our Industrial Standards & Compliance Guide.
Tolerance Charts for Cold-Finished Square Bars
Dimensional accuracy is what separates a high-quality component from a failed one. Our cold-finished square bars are produced to strict ASTM tolerances, ensuring that the cross-section remains consistent across the full length of the bar. This is vital for applications involving slide rails, guide bars, or precision support frames where tight tolerances are non-negotiable. To understand how grade properties influence machining tolerances and surface finish, refer to our Grade Comparison & Machining Guide.
Industrial Applications for Stainless Steel Square Rods
Square Bars for Construction and Structural Support
In structural engineering, the square profile is preferred for its high section modulus and torsional rigidity compared to round bars. Our stainless steel square bars are frequently specified for architectural frameworks, handrail systems, and industrial support brackets where both load-bearing capacity and aesthetic finish are required. These applications rely on the material's ability to maintain structural integrity under static and dynamic loading over long service cycles.
Precision Square Bars for the Automotive and Machinery Industry
The automotive and heavy machinery sectors demand high-precision bars that can withstand rigorous secondary machining without warping. We supply cold-finished square rods that provide the necessary dimensional stability for guide rails, drive shafts, and high-tolerance mounting components. For teams optimizing their manufacturing output, our material ensures consistent tool-life and predictable surface outcomes, which is critical for high-speed assembly and machine-tool alignment.
Stainless Steel Square Rod Finishing and Surface Types
The final application often dictates the required finish—whether it is a No. 1B finish for hidden structural components or a bright-polished finish for visible architectural elements. We manage a diverse range of surface conditions, including black, bright, and polished finishes, to suit specific fabrication workflows. Selecting the correct finish is not just an aesthetic choice; it significantly impacts the material's corrosion resistance and the final cost of your machined assembly.
Procurement Guide for Steel House India Clients
Why We Provide 100% Certified Mill Test Reports (MTR)
For procurement managers and quality assurance teams, the Mill Test Report (MTR) is the only document that confirms the material's chemical and mechanical integrity. We provide full chemical traceability for every batch we supply. When you receive your material, you are guaranteed that the test data matches the heat number on the bars, giving your team the documentation required for ISO audits and high-stakes industrial projects.
Fast Delivery Process for Indian Industrial Manufacturers
We understand that supply chain delays translate to downtime on your shop floor. Our facility is strategically optimized for rapid dispatch, maintaining ready-to-ship stock for common grades across major industrial zones in India. By streamlining our order processing, we ensure that your procurement cycle—from initial inquiry to site delivery—is as efficient as possible, allowing your production schedule to remain uninterrupted.
Requesting Custom M.O.Q for Specific Square Bar Sizes
We recognize that standard stock sizes do not always fit the unique requirements of every engineering drawing. If your project demands specific dimensions or specialized finishes that fall outside our standard inventory, our technical team works with you to define a Minimum Order Quantity (M.O.Q) that balances your project needs with manufacturing feasibility. If you are ready to discuss your specific requirements or need a formal quote for your upcoming project, you can get in touch with our team via our Contact Us & RFQ Page.
